NEOM Mountain

The project includes design review of a water transmission line with a length of 42 km, including carbon steel pipes with a diameter of 1000 mm. The line transmits water from a break pressure tank with a capacity of 285,000 m3) to the Mountain Reservoir which has a capacity of 60,000 m3). This adds to 4 booster pump stations; each with a flow rate of 96,000 m3/day.
Scope of works cover preparing the concept design and detailed design master plans for facilitating the
construction activities in the logistic zone which comprise the following three areas:

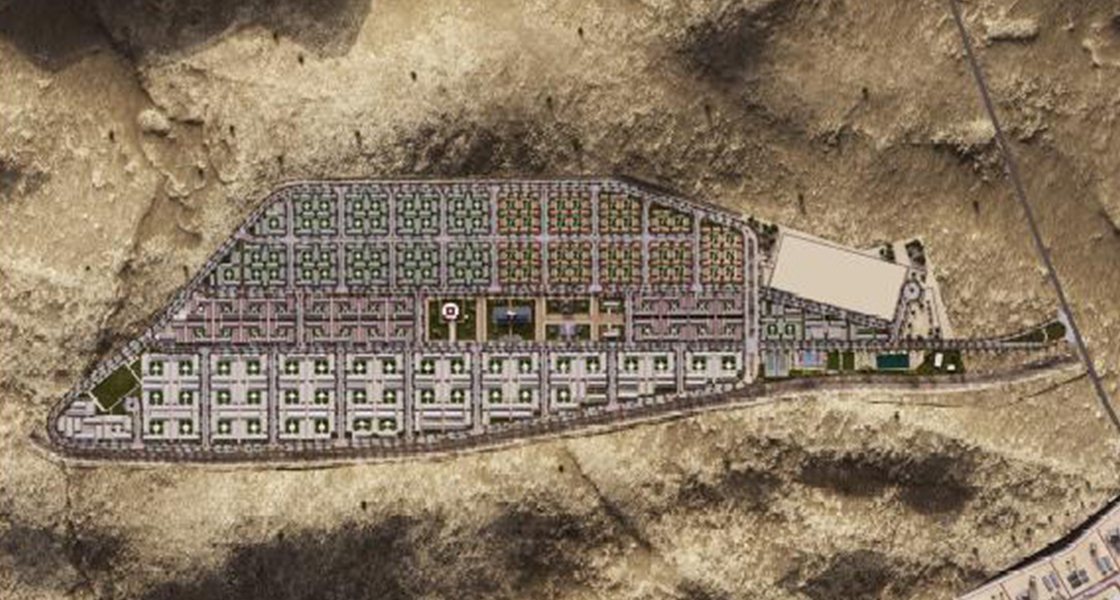

Contractors’ Village

With an estimated area of 760,000 m2; the Contractor’s Village accommodates 24,000 persons and comprise the following:

• Accommodation buildings with different design features:
  – Type A: Manager Accommodation Buildings (158 bld. x 126 m2 = 19,846 m2)
  – Type B1: Senior Accommodation Buildings (73 bld. x 186 m2 = 13,552 m2)
  – Type B2: Senior Accommodation Buildings (70 bld. x 247 m2 = 17,309 m2)
  – Type C1: Junior Accommodation Buildings (51 bld. x 186 m2 = 18,936 m2)
  – Type C2: Junior Accommodation Buildings (48 bld. x 247 m2 = 23,738 m2)
  – Type D1: Labour Accommodation Buildings (16 bld. x 187 m2 = 5,991 m2)
  – Type D2: Labour Accommodation Building (170 bld. x 280 m2 = 95,353 m2)
• Mosque with an area of 3,000 m2
• Central Kitchen with an area of 3,000 m2
• Sport club with an area of 16,968 m2
• Utilities with an area of 14,824 m2
• Internal roads
• Flood protection channels

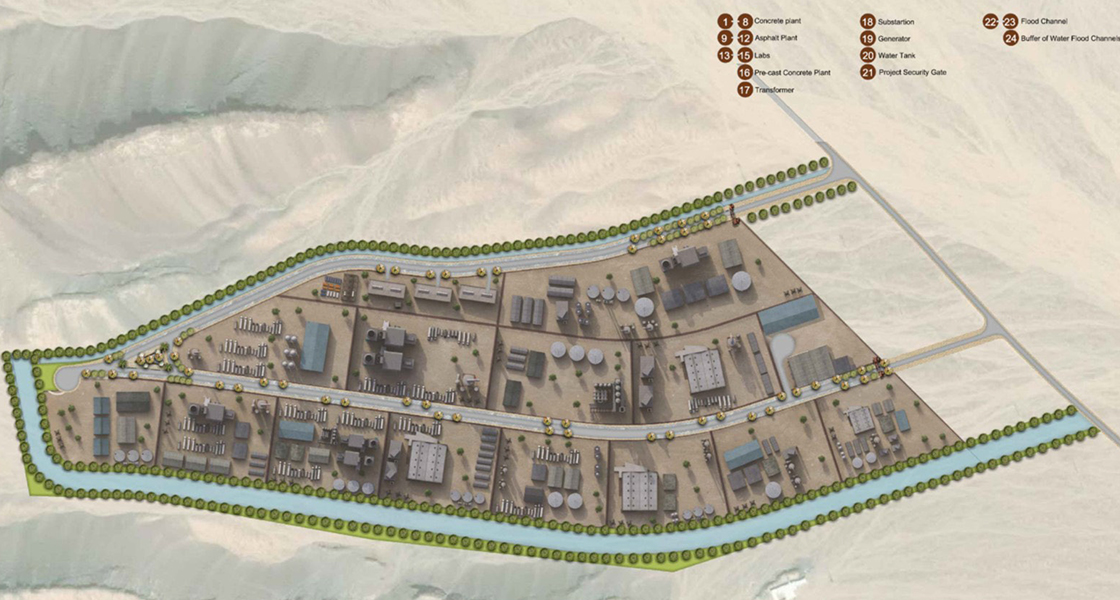

Batch Plants’ Area

With an estimated area of 353,198 m2; this area is allocated for installing concrete-batch plants, asphalt-mix plants, and pre-cast concrete facility.

• The land is divided into sub-plots including:
  – 8 plots for concrete production (each with an area of approximately 15,000 m2)
  – 4 plots for asphalt production (each with an area of approximately 18,000 m2)
  – One plot for pre-cast concrete production facility with an area of approximately 35,000 m2
  – Labs with an area of 3 x 1000 m2
  – Utilities with an area of 11,000 m2
  – Security/guard rooms
  – Flood protection channels
  – Internal roads

Laydown Yard Area

With a total area of 258,591 m2; the laydown yard is divided into sub-plots, including:

– 13 plots for material laydown & logistics (each with an average area of 10,000 m2)
– 1 plot for workers camp with an average area of 50,000 m2
– Utilities with an area of 5,198 m2
– Fuel depot & concrete mix truck washing facility with a total area of 15,000 m2
– Security/guard rooms
– Flood protection channels
– Internal roads
